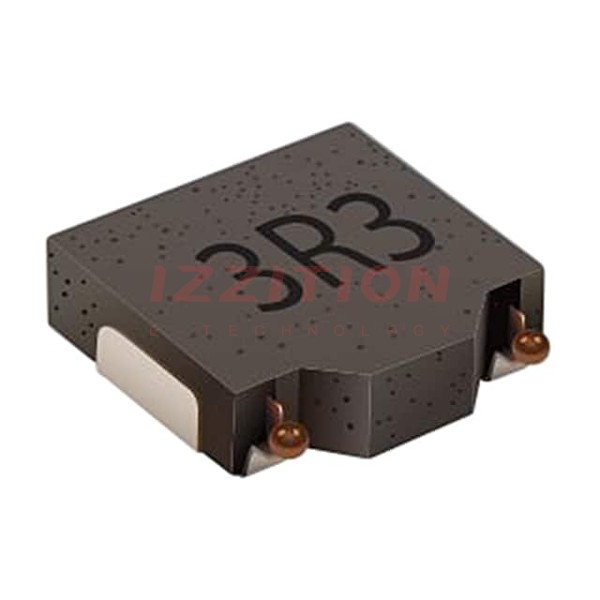

| Part Number | SRP0520-3R3K | SRP0620-3R3K | SRP0320-3R3K | SRP0420-3R3K | SRP0510-3R3K |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Last Time Buy |
| Type | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH | 3.3 µH | 3.3 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 4.8 A | 6.6 A | 2.5 A | 3.9 A | 2.8 A |
| Current - Saturation (Isat) | 7.4A | 8.5A | 3.3A | 5.2A | 4.6A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 40.5mOhm Max | 30.2mOhm Max | 119mOhm Max | 52mOhm Max | 104mOhm Max |
| Q @ Freq | 41 @ 7.96MHz | 25 @ 7.96MHz | 34 @ 7.96MHz | 40 @ 7.96MHz | 33 @ 7.96MHz |
| Frequency - Self Resonant | 20MHz | 20MHz | 36MHz | 25MHz | 21MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.039" (1.00mm) |
