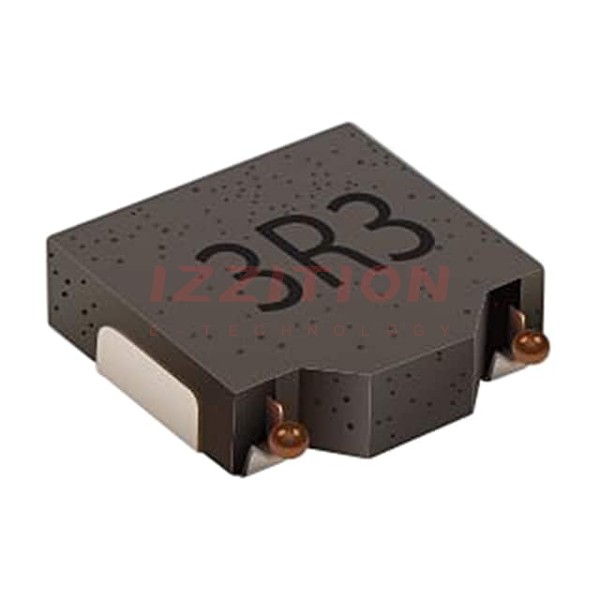

| Part Number | SRP0520-1R0K | SRP0620-1R0K | SRP0320-1R0K | SRP0420-1R0K | SRP0510-1R0K | SRP0520-100K |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Last Time Buy | Active |
| Type | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 1 µH | 1 µH | 1 µH | 1 µH | 1 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 8.5 A | 11 A | 6.3 A | 7.3 A | 4 A | 2.4 A |
| Current - Saturation (Isat) | 15.5A | 15.7A | 6.5A | 10.6A | 8A | 4A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 14.2mOhm Max | 10.6mOhm Max | 21.3mOhm Max | 18.5mOhm Max | 57mOhm Max | 152mOhm Max |
| Q @ Freq | 54 @ 7.96MHz | 40 @ 7.96MHz | 34 @ 7.96MHz | 50 @ 7.96MHz | 41 @ 7.96MHz | 68 @ 2.52MHz |
| Frequency - Self Resonant | 51MHz | 41MHz | 64MHz | 50MHz | 51MHz | 12MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.079" (2.00mm) |
