Bourns Inc.-SRP0515-3R3K - Fixed Inductors Product Specifications and Latest Quotes

Part Number	SRP0515-3R3K	SRP0615-3R3K	SRP0315-3R3K	SRP0415-3R3K	SRP0510-3R3K	SRP0512-3R3K
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Active	Active	Active	Active	Last Time Buy	Active
Type	-	-	-	-	-	-
Material - Core	Metal	Metal	Metal	Metal	Metal	Metal
Inductance	3.3 µH	3.3 µH	3.3 µH	3.3 µH	3.3 µH	3.3 µH
Tolerance	±10%	±10%	±10%	±10%	±10%	±10%
Current Rating (Amps)	4.7 A	5.3 A	2.5 A	3.2 A	2.8 A	3.2 A
Current - Saturation (Isat)	6A	8A	3.4A	4.6A	4.6A	5.6A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	51mOhm Max	43.3mOhm Max	129mOhm Max	82.5mOhm Max	104mOhm Max	81.5mOhm Max
Q @ Freq	38 @ 7.96MHz	43 @ 7.96MHz	25 @ 7.96MHz	40 @ 7.96MHz	33 @ 7.96MHz	37 @ 7.96MHz
Frequency - Self Resonant	22MHz	27MHz	34MHz	33MHz	21MHz	24MHz
Ratings	-	-	-	-	-	-
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.213" L x 0.201" W (5.40mm x 5.10mm)	0.280" L x 0.264" W (7.10mm x 6.70mm)	0.134" L x 0.122" W (3.40mm x 3.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.213" L x 0.201" W (5.40mm x 5.10mm)	0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.039" (1.00mm)	0.047" (1.20mm)

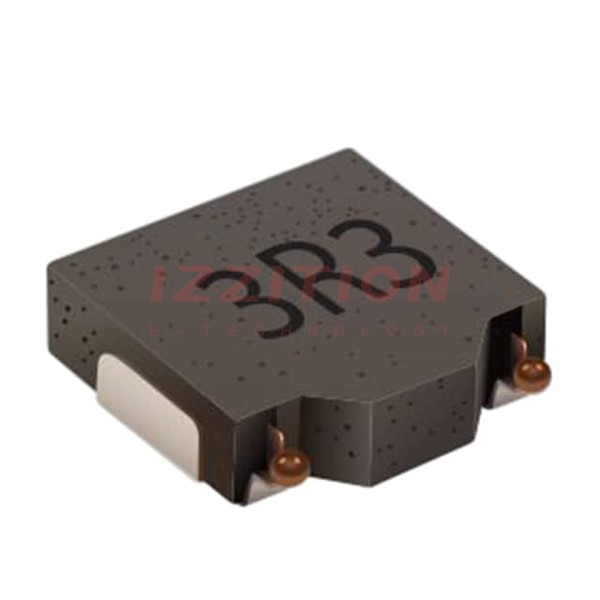

Bourns Inc. SRP0515-3R3K
