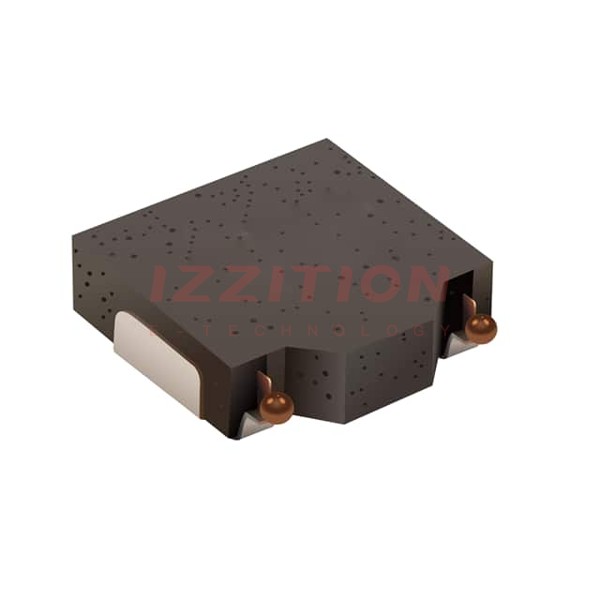

| Part Number | SRP0510-R47K | SRP0512-R47K | SRP0520-R47K | SRP0515-R47K | SRP0610-R47K | SRP0310-R47K | SRP0410-R47K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Active | Active | Active | Last Time Buy | Last Time Buy | Last Time Buy |
| Type | - | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 470 nH | 470 nH | 470 nH | 470 nH | 470 nH | 470 nH | 470 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 5 A | 8.3 A | 12.5 A | 9.5 A | 4.7 A | 5.6 A | 5.2 A |
| Current - Saturation (Isat) | 10.5A | 14A | 20A | 14.5A | 10.5A | 7A | 9.2A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 38mOhm Max | 14.9mOhm Max | 7.2mOhm Max | 11.2mOhm Max | 41.2mOhm Max | 26.5mOhm Max | 35.3mOhm Max |
| Q @ Freq | 21 @ 25.2MHz | 18 @ 25.2MHz | 19 @ 25.2MHz | 16 @ 25.2MHz | 20 @ 25.2MHz | 18 @ 25.2MHz | 21 @ 25.2MHz |
| Frequency - Self Resonant | 89MHz | 68MHz | 67MHz | 65MHz | 70MHz | 90MHz | 82MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.079" (2.00mm) | 0.059" (1.50mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
