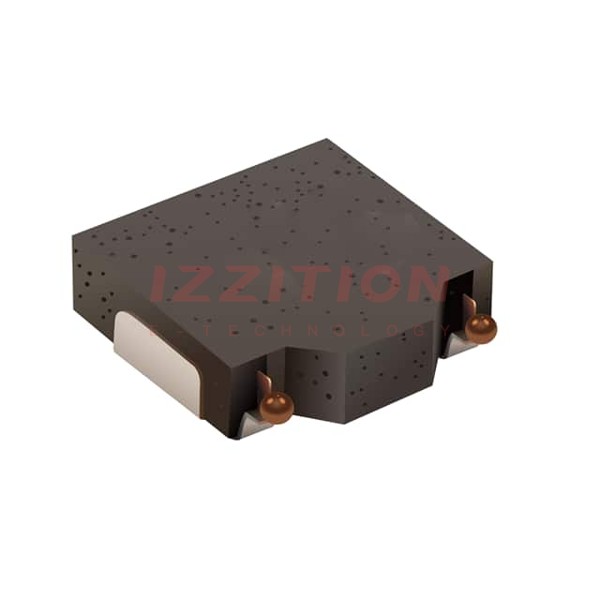

SRP0510-4R7K
  • Share:

Bourns Inc. SRP0510-4R7K

Manufacturer No:
SRP0510-4R7K
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRP0510-4R7K Datasheet
ECAD Model:
-
Description:
FIXED IND 4.7UH 2.4A 151MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:-
Material - Core:Metal
Inductance:4.7 µH
Tolerance:±10%
Current Rating (Amps):2.4 A
Current - Saturation (Isat):3.6A
Shielding:Shielded
DC Resistance (DCR):151mOhm Max
Q @ Freq:25 @ 7.96MHz
Frequency - Self Resonant:21MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max):0.039" (1.00mm)
0 Remaining View Similar

In Stock

$0.98
371

Please send RFQ , we will respond immediately.

Similar Products

Part Number SRP0510-4R7K SRP0512-4R7K   SRP0515-4R7K   SRP0610-4R7K   SRP0520-4R7K   SRP0310-4R7K   SRP0410-4R7K
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Last Time Buy Active Active Last Time Buy Active Last Time Buy Last Time Buy
Type - - - - - - -
Material - Core Metal Metal Metal Metal Metal Metal Metal
Inductance 4.7 µH 4.7 µH 4.7 µH 4.7 µH 4.7 µH 4.7 µH 4.7 µH
Tolerance ±10% ±10% ±10% ±10% ±10% ±10% ±10%
Current Rating (Amps) 2.4 A 3.1 A 3.7 A 2.8 A 4.2 A 1.8 A 1.9 A
Current - Saturation (Isat) 3.6A 4.9A 5A 4.6A 5.3A 2.1A 2.8A
Shielding Shielded Shielded Shielded Shielded Shielded Shielded Shielded
DC Resistance (DCR) 151mOhm Max 100mOhm Max 73.5mOhm Max 133mOhm Max 54.1mOhm Max 215mOhm Max 210mOhm Max
Q @ Freq 25 @ 7.96MHz 32 @ 7.96MHz 25 @ 7.96MHz 31 @ 7.96MHz 18 @ 7.96MHz 18 @ 7.96MHz 21 @ 7.96MHz
Frequency - Self Resonant 21MHz 19MHz 18MHz 16MHz 19MHz 25MHz 26MHz
Ratings - - - - - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - - - - -
Size / Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm) 0.213" L x 0.201" W (5.40mm x 5.10mm) 0.213" L x 0.201" W (5.40mm x 5.10mm) 0.280" L x 0.264" W (7.10mm x 6.70mm) 0.213" L x 0.201" W (5.40mm x 5.10mm) 0.134" L x 0.122" W (3.40mm x 3.10mm) 0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max) 0.039" (1.00mm) 0.047" (1.20mm) 0.059" (1.50mm) 0.039" (1.00mm) 0.079" (2.00mm) 0.039" (1.00mm) 0.039" (1.00mm)
