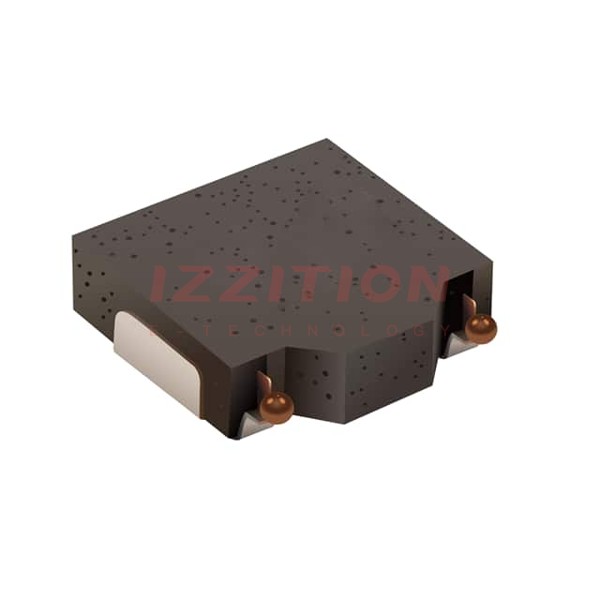

| Part Number | SRP0510-1R5K | SRP0515-1R5K | SRP0512-1R5K | SRP0610-1R5K | SRP0310-1R5K | SRP0410-1R5K | SRP0510-1R0K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Active | Active | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy |
| Type | - | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 1.5 µH | 1.5 µH | 1.5 µH | 1.5 µH | 1.5 µH | 1.5 µH | 1 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 3.6 A | 6.3 A | 6.2 A | 3.5 A | 2.4 A | 3.9 A | 4 A |
| Current - Saturation (Isat) | 6.5A | 9.4A | 7A | 7.5A | 4.2A | 4.8A | 8A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 65mOhm Max | 24.2mOhm Max | 29mOhm Max | 74mOhm Max | 105mOhm Max | 64mOhm Max | 57mOhm Max |
| Q @ Freq | 41 @ 7.96MHz | 49 @ 7.96MHz | 26 @ 7.96MHz | 43 @ 7.96MHz | 16 @ 7.96MHz | 35 @ 7.96MHz | 41 @ 7.96MHz |
| Frequency - Self Resonant | 40MHz | 35MHz | 32MHz | 37MHz | 56MHz | 40MHz | 51MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
