Bourns Inc.-SRP0415-4R7K - Fixed Inductors Product Specifications and Latest Quotes

Part Number	SRP0415-4R7K	SRP0515-4R7K	SRP0615-4R7K	SRP0315-4R7K	SRP0410-4R7K	SRP0412-4R7K
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Active	Active	Active	Active	Last Time Buy	Active
Type	-	-	-	-	-	-
Material - Core	Metal	Metal	Metal	Metal	Metal	Metal
Inductance	4.7 µH	4.7 µH	4.7 µH	4.7 µH	4.7 µH	4.7 µH
Tolerance	±10%	±10%	±10%	±10%	±10%	±10%
Current Rating (Amps)	2.8 A	3.7 A	4.3 A	2.3 A	1.9 A	2.6 A
Current - Saturation (Isat)	4.1A	5A	6A	2.7A	2.8A	3.7A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	100mOhm Max	73.5mOhm Max	62mOhm Max	152mOhm Max	210mOhm Max	128mOhm Max
Q @ Freq	39 @ 7.96MHz	25 @ 7.96MHz	33 @ 7.96MHz	21 @ 7.96MHz	21 @ 7.96MHz	38 @ 7.96MHz
Frequency - Self Resonant	25MHz	18MHz	16MHz	25MHz	26MHz	26MHz
Ratings	-	-	-	-	-	-
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.213" L x 0.201" W (5.40mm x 5.10mm)	0.280" L x 0.264" W (7.10mm x 6.70mm)	0.134" L x 0.122" W (3.40mm x 3.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.039" (1.00mm)	0.047" (1.20mm)

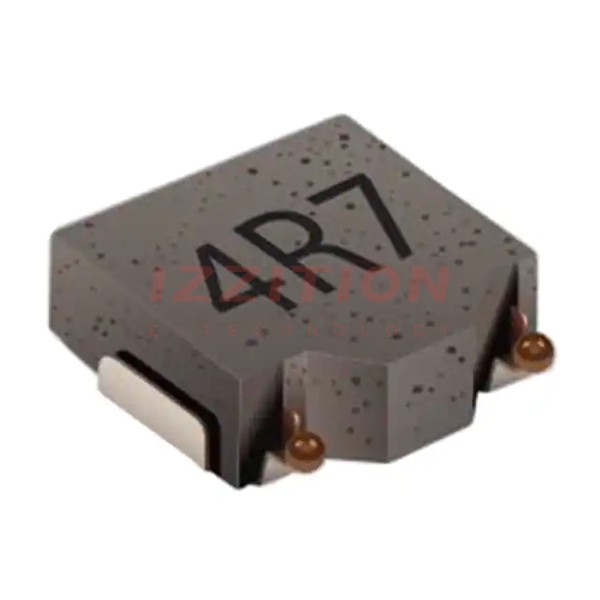

Bourns Inc. SRP0415-4R7K
