Bourns Inc.-SRP0412-R47K - Fixed Inductors Product Specifications and Latest Quotes

Part Number	SRP0412-R47K	SRP0512-R47K	SRP0612-R47K	SRP0415-R47K	SRP0312-R47K	SRP0410-R47K
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Active	Active	Active	Active	Active	Last Time Buy
Type	-	-	-	-	-	-
Material - Core	Metal	Metal	Metal	Metal	Metal	Metal
Inductance	470 nH	470 nH	470 nH	470 nH	470 nH	470 nH
Tolerance	±10%	±10%	±10%	±10%	±10%	±10%
Current Rating (Amps)	7.6 A	8.3 A	7.7 A	9.3 A	6.6 A	5.2 A
Current - Saturation (Isat)	13.5A	14A	15.5A	13.8A	8A	9.2A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	15.3mOhm Max	14.9mOhm Max	17.1mOhm Max	11.3mOhm Max	17.8mOhm Max	35.3mOhm Max
Q @ Freq	20 @ 25.2MHz	18 @ 25.2MHz	21 @ 25.2MHz	19 @ 25.2MHz	18 @ 25.2MHz	21 @ 25.2MHz
Frequency - Self Resonant	90MHz	68MHz	68MHz	80MHz	91MHz	82MHz
Ratings	-	-	-	-	-	-
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.213" L x 0.201" W (5.40mm x 5.10mm)	0.280" L x 0.264" W (7.10mm x 6.70mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.134" L x 0.122" W (3.40mm x 3.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max)	0.047" (1.20mm)	0.047" (1.20mm)	0.047" (1.20mm)	0.059" (1.50mm)	0.047" (1.20mm)	0.039" (1.00mm)

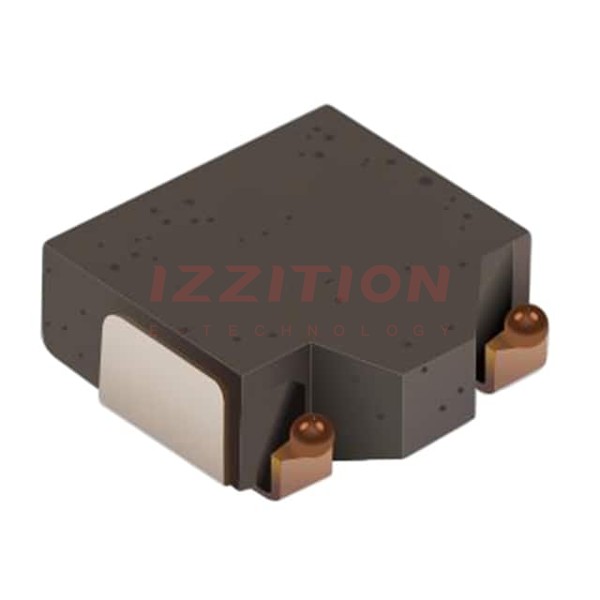

Bourns Inc. SRP0412-R47K
