Bourns Inc.-SRP0412-2R2K - Fixed Inductors Product Specifications and Latest Quotes

Part Number	SRP0412-2R2K	SRP0415-2R2K	SRP0512-2R2K	SRP0612-2R2K	SRP0312-2R2K	SRP0410-2R2K
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Active	Active	Active	Active	Active	Last Time Buy
Type	-	-	-	-	-	-
Material - Core	Metal	Metal	Metal	Metal	Metal	Metal
Inductance	2.2 µH	2.2 µH	2.2 µH	2.2 µH	2.2 µH	2.2 µH
Tolerance	±10%	±10%	±10%	±10%	±10%	±10%
Current Rating (Amps)	4.1 A	4.2 A	4.2 A	5.5 A	3.1 A	3 A
Current - Saturation (Isat)	5.2A	6.5A	6.8A	7A	3.7A	3.9A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	57.5mOhm Max	48mOhm Max	51.5mOhm Max	38.8mOhm Max	74mOhm Max	87mOhm Max
Q @ Freq	37 @ 7.96MHz	42 @ 7.96MHz	39 @ 7.96MHz	22 @ 7.96MHz	28 @ 7.96MHz	22 @ 7.96MHz
Frequency - Self Resonant	33MHz	33MHz	28MHz	32MHz	38MHz	33MHz
Ratings	-	-	-	-	-	-
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.213" L x 0.201" W (5.40mm x 5.10mm)	0.280" L x 0.264" W (7.10mm x 6.70mm)	0.134" L x 0.122" W (3.40mm x 3.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max)	0.047" (1.20mm)	0.059" (1.50mm)	0.047" (1.20mm)	0.047" (1.20mm)	0.047" (1.20mm)	0.039" (1.00mm)

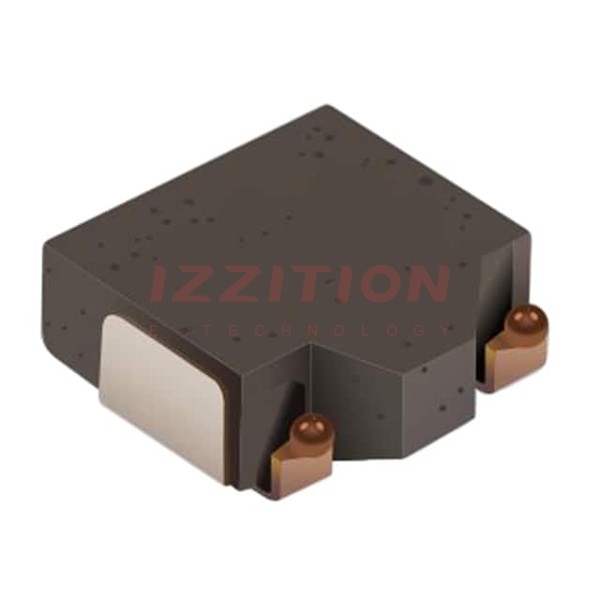

Bourns Inc. SRP0412-2R2K
