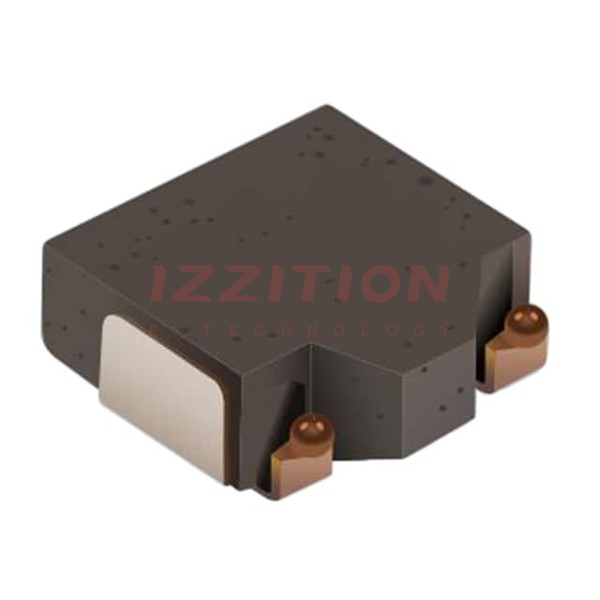

| Part Number | SRP0412-1R0K | SRP0415-1R0K | SRP0512-1R0K | SRP0412-1R5K | SRP0612-1R0K | SRP0312-1R0K | SRP0410-1R0K | SRP0412-100K |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Last Time Buy | Active |
| Type | - | - | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 1 µH | 1 µH | 1 µH | 1.5 µH | 1 µH | 1 µH | 1 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 5.3 A | 6.1 A | 6.5 A | 4.8 A | 6.2 A | 4.7 A | 4.5 A | 1.7 A |
| Current - Saturation (Isat) | 8.2A | 9.4A | 10A | 5.8A | 12A | 5A | 5.3A | 1.9A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 29.5mOhm Max | 22.5mOhm Max | 23mOhm Max | 43.3mOhm Max | 27.5mOhm Max | 34mOhm Max | 42.5mOhm Max | 250mOhm Max |
| Q @ Freq | 45 @ 7.96MHz | 47 @ 7.96MHz | 43 @ 7.96MHz | 26 @ 7.96MHz | 54 @ 7.96MHz | 23 @ 7.96MHz | 20 @ 7.96MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 55MHz | 52MHz | 45MHz | 42MHz | 42MHz | 59MHz | 52MHz | 15MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.059" (1.50mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.047" (1.20mm) |
