Bourns Inc.-SRP0412-100K - Fixed Inductors Product Specifications and Latest Quotes

Part Number	SRP0412-100K	SRP0415-100K	SRP0512-100K	SRP0412-1R0K	SRP0612-100K	SRP0410-100K
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Active	Active	Active	Active	Active	Last Time Buy
Type	-	-	-	-	-	-
Material - Core	Metal	Metal	Metal	Metal	Metal	Metal
Inductance	10 µH	10 µH	10 µH	1 µH	10 µH	10 µH
Tolerance	±10%	±10%	±10%	±10%	±10%	±10%
Current Rating (Amps)	1.7 A	1.9 A	2.1 A	5.3 A	2.7 A	1.4 A
Current - Saturation (Isat)	1.9A	2.1A	2.5A	8.2A	3A	1.7A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	250mOhm Max	230mOhm Max	200mOhm Max	29.5mOhm Max	157mOhm Max	350mOhm Max
Q @ Freq	20 @ 2.52MHz	21 @ 2.52MHz	26 @ 2.52MHz	45 @ 7.96MHz	26 @ 2.52MHz	20 @ 2.52MHz
Frequency - Self Resonant	15MHz	15MHz	12MHz	55MHz	10MHz	16MHz
Ratings	-	-	-	-	-	-
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.213" L x 0.201" W (5.40mm x 5.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.280" L x 0.264" W (7.10mm x 6.70mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max)	0.047" (1.20mm)	0.059" (1.50mm)	0.047" (1.20mm)	0.047" (1.20mm)	0.047" (1.20mm)	0.039" (1.00mm)

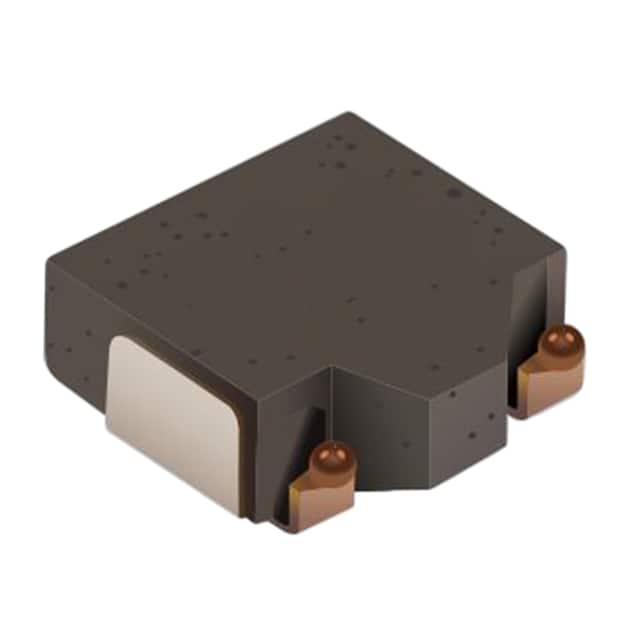

Bourns Inc. SRP0412-100K
