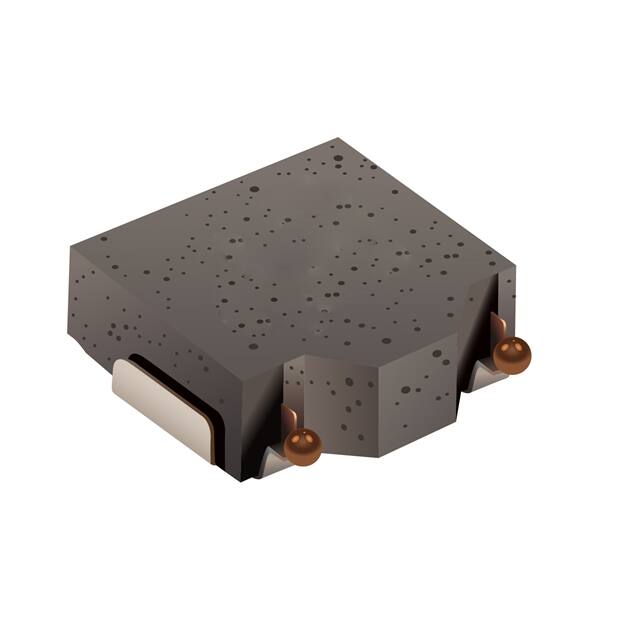

| Part Number | SRP0410-R68K | SRP0412-R68K | SRP0415-R68K | SRP0420-R68K | SRP0610-R68K | SRP0510-R68K | SRP0310-R68K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Active | Active | Active | Last Time Buy | Last Time Buy | Last Time Buy |
| Type | - | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 680 nH | 680 nH | 680 nH | 680 nH | 680 nH | 680 nH | 680 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 5.2 A | 5.6 A | 8.6 A | 9.3 A | 4.7 A | 4.6 A | 4.6 A |
| Current - Saturation (Isat) | 7A | 10.5A | 9.6A | 10.5A | 9.5A | 8.5A | 6A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 36mOhm Max | 25mOhm Max | 13.8mOhm Max | 13.2mOhm Max | 43mOhm Max | 43.5mOhm Max | 35.5mOhm Max |
| Q @ Freq | 16 @ 25.2MHz | 20 @ 25.2MHz | 7 @ 25.2MHz | 11 @ 25.2MHz | 18 @ 25.2MHz | 19 @ 25.2MHz | 18 @ 25.2MHz |
| Frequency - Self Resonant | 71MHz | 74MHz | 73MHz | 64MHz | 55MHz | 72MHz | 70MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.059" (1.50mm) | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
