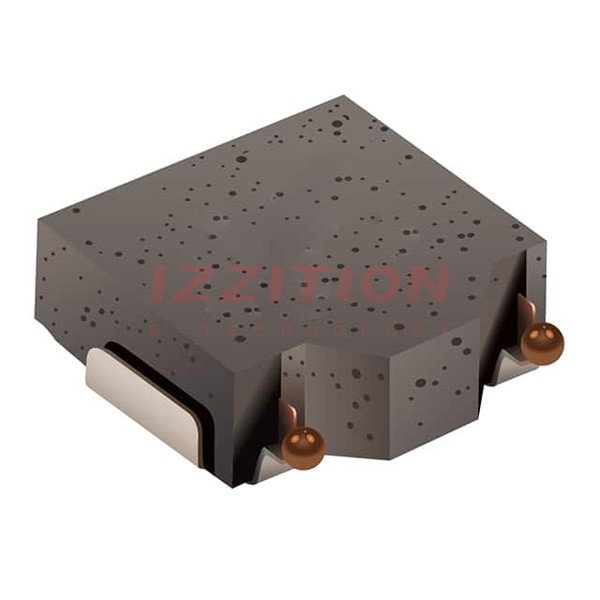

| Part Number | SRP0410-1R0K | SRP0415-1R0K | SRP0510-1R0K | SRP0412-1R0K | SRP0410-1R5K | SRP0610-1R0K | SRP0420-1R0K | SRP0310-1R0K | SRP0410-100K |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Active | Last Time Buy | Active | Last Time Buy | Last Time Buy | Active | Last Time Buy | Last Time Buy |
| Type | - | - | - | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 1 µH | 1 µH | 1 µH | 1 µH | 1.5 µH | 1 µH | 1 µH | 1 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 4.5 A | 6.1 A | 4 A | 5.3 A | 3.9 A | 4.4 A | 7.3 A | 3.4 A | 1.4 A |
| Current - Saturation (Isat) | 5.3A | 9.4A | 8A | 8.2A | 4.8A | 8A | 10.6A | 5.6A | 1.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 42.5mOhm Max | 22.5mOhm Max | 57mOhm Max | 29.5mOhm Max | 64mOhm Max | 54mOhm Max | 18.5mOhm Max | 58.5mOhm Max | 350mOhm Max |
| Q @ Freq | 20 @ 7.96MHz | 47 @ 7.96MHz | 41 @ 7.96MHz | 45 @ 7.96MHz | 35 @ 7.96MHz | 49 @ 7.96MHz | 50 @ 7.96MHz | 16 @ 7.96MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 52MHz | 52MHz | 51MHz | 55MHz | 40MHz | 43MHz | 50MHz | 64MHz | 16MHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
