Please send RFQ , we will respond immediately.

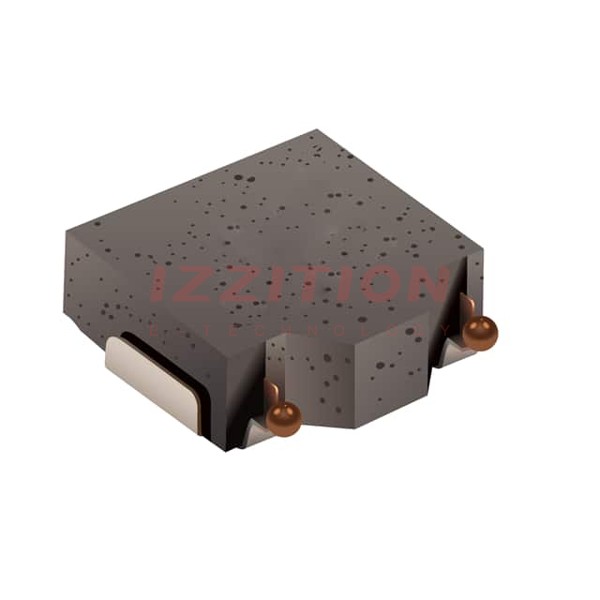

| Part Number | SRP0410-100K | SRP0415-100K | SRP0412-100K | SRP0610-100K | SRP0410-1R0K | SRP0510-100K | SRP0420-100K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Active | Active | Last Time Buy | Last Time Buy | Last Time Buy | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 10 µH | 10 µH | 10 µH | 10 µH | 1 µH | 10 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.4 A | 1.9 A | 1.7 A | 2 A | 4.5 A | 1.6 A | 1.8 A |
| Current - Saturation (Isat) | 1.7A | 2.1A | 1.9A | 2.5A | 5.3A | 2.1A | 2.8A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 350mOhm Max | 230mOhm Max | 250mOhm Max | 240mOhm Max | 42.5mOhm Max | 335mOhm Max | 235mOhm Max |
| Q @ Freq | 20 @ 2.52MHz | 21 @ 2.52MHz | 20 @ 2.52MHz | 11 @ 2.52MHz | 20 @ 7.96MHz | 24 @ 2.52MHz | 35 @ 2.52MHz |
| Frequency - Self Resonant | 16MHz | 15MHz | 15MHz | 11MHz | 52MHz | 15MHz | 17MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.079" (2.00mm) |
