Bourns Inc.-SRP0315-1R5K - Fixed Inductors Product Specifications and Latest Quotes

Part Number	SRP0315-1R5K	SRP0415-1R5K	SRP0515-1R5K	SRP0310-1R5K	SRP0312-1R5K	SRP0315-1R0K
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Active	Active	Active	Last Time Buy	Active	Active
Type	-	-	-	-	-	-
Material - Core	Metal	Metal	Metal	Metal	Metal	Metal
Inductance	1.5 µH	1.5 µH	1.5 µH	1.5 µH	1.5 µH	1 µH
Tolerance	±10%	±10%	±10%	±10%	±10%	±10%
Current Rating (Amps)	4.1 A	5.4 A	6.3 A	2.4 A	3.6 A	5.6 A
Current - Saturation (Isat)	4.4A	7A	9.4A	4.2A	4.3A	6.5A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	48mOhm Max	30mOhm Max	24.2mOhm Max	105mOhm Max	58mOhm Max	28.1mOhm Max
Q @ Freq	14 @ 7.96MHz	43 @ 7.96MHz	49 @ 7.96MHz	16 @ 7.96MHz	28 @ 7.96MHz	25 @ 7.96MHz
Frequency - Self Resonant	46MHz	43MHz	35MHz	56MHz	45MHz	52MHz
Ratings	-	-	-	-	-	-
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.134" L x 0.122" W (3.40mm x 3.10mm)	0.173" L x 0.161" W (4.40mm x 4.10mm)	0.213" L x 0.201" W (5.40mm x 5.10mm)	0.134" L x 0.122" W (3.40mm x 3.10mm)	0.134" L x 0.122" W (3.40mm x 3.10mm)	0.134" L x 0.122" W (3.40mm x 3.10mm)
Height - Seated (Max)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.039" (1.00mm)	0.047" (1.20mm)	0.059" (1.50mm)

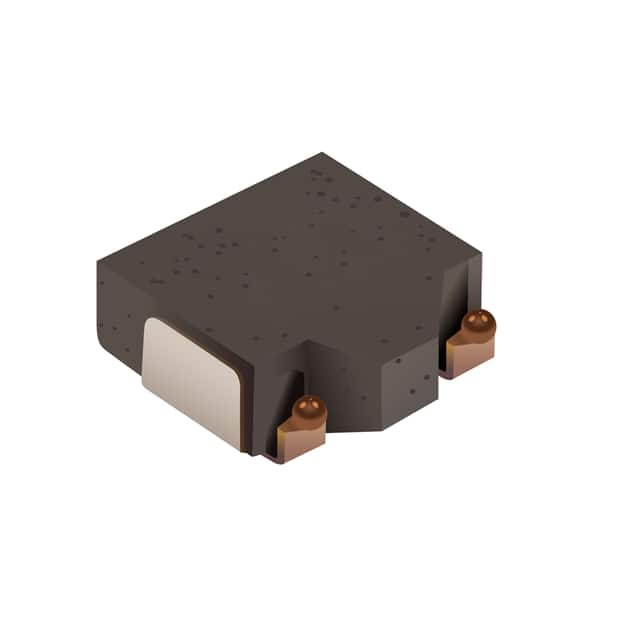

Bourns Inc. SRP0315-1R5K
