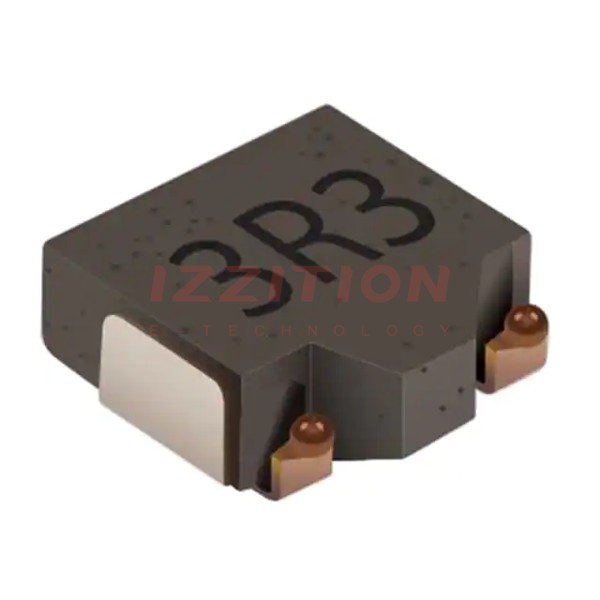

| Part Number | SRP0312-3R3K | SRP0315-3R3K | SRP0412-3R3K | SRP0512-3R3K | SRP0310-3R3K |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Last Time Buy |
| Type | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH | 3.3 µH | 3.3 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 2.4 A | 2.5 A | 2.8 A | 3.2 A | 2.1 A |
| Current - Saturation (Isat) | 3A | 3.4A | 4.2A | 5.6A | 2.2A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 129mOhm Max | 129mOhm Max | 105mOhm Max | 81.5mOhm Max | 160mOhm Max |
| Q @ Freq | 22 @ 7.96MHz | 25 @ 7.96MHz | 38 @ 7.96MHz | 37 @ 7.96MHz | 12 @ 7.96MHz |
| Frequency - Self Resonant | 36MHz | 34MHz | 28MHz | 24MHz | 32MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.134" L x 0.122" W (3.40mm x 3.10mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.059" (1.50mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.039" (1.00mm) |
