SRN6045TA-8R2M
  • Share:

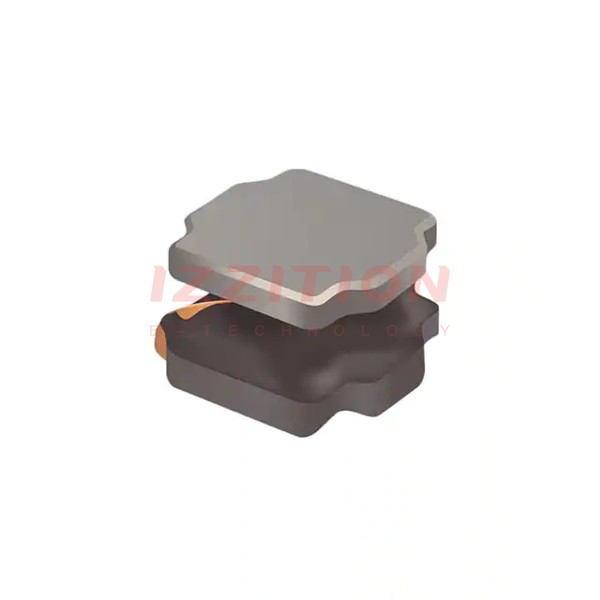

Bourns Inc. SRN6045TA-8R2M

Manufacturer No:
SRN6045TA-8R2M
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRN6045TA-8R2M Datasheet
ECAD Model:
-
Description:
FIXED IND 8.2UH 3.4A 55.2MOHM SM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:8.2 µH
Tolerance:±20%
Current Rating (Amps):3.4 A
Current - Saturation (Isat):5.1A
Shielding:Semi-Shielded
DC Resistance (DCR):55.2mOhm Max
Q @ Freq:15 @ 1MHz
Frequency - Self Resonant:27MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):0.177" (4.50mm)
0 Remaining View Similar

In Stock

$0.66
434

Please send RFQ , we will respond immediately.
