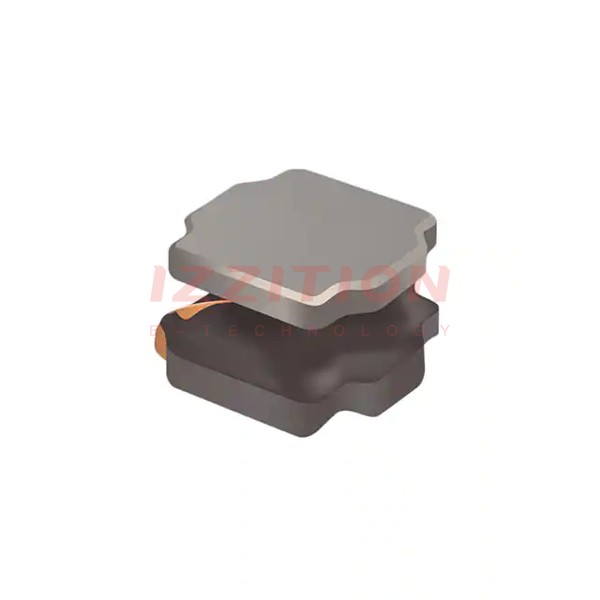

| Part Number | SRN6045TA-220M | SRN6045TA-820M | SRN6045TA-221M | SRN6045HA-220M | SRN6045TA-120M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 82 µH | 220 µH | 22 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.3 A | 980 mA | 600 mA | 1.7 A | 3 A |
| Current - Saturation (Isat) | 3.3A | 1.5A | 880mA | 2.5A | 4A |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 96mOhm | 365mOhm | 900mOhm | 144mOhm Max | 78mOhm Max |
| Q @ Freq | 15 @ 1MHz | 15 @ 1MHz | 15 @ 1MHz | 24 @ 2.52MHz | 15 @ 1MHz |
| Frequency - Self Resonant | 17MHz | 9MHz | 5MHz | 13MHz | 22MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 100 kHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.185" (4.70mm) | 0.177" (4.50mm) |
