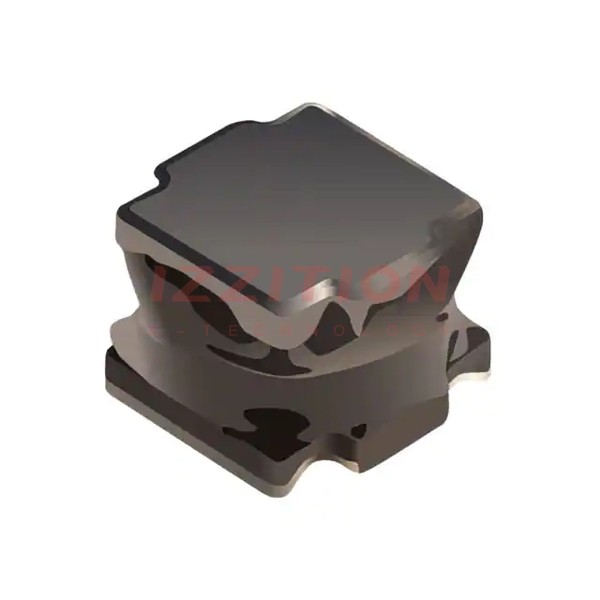

| Part Number | SRN6045HA-330M | SRN6045TA-330M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.5 A | 1.8 A |
| Current - Saturation (Isat) | 2.2A | 2.5A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 211mOhm Max | 145mOhm |
| Q @ Freq | 24 @ 2.52MHz | 15 @ 1MHz |
| Frequency - Self Resonant | 10MHz | 13MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) | 0.177" (4.50mm) |
