Please send RFQ , we will respond immediately.

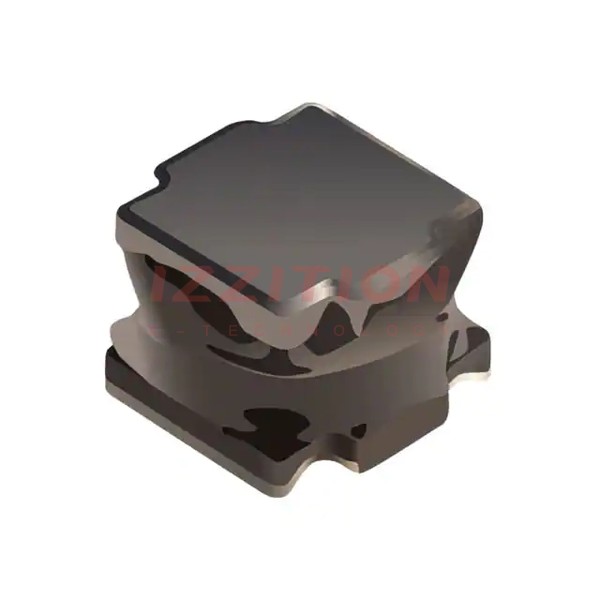

| Part Number | SRN6045HA-1R0Y | SRN6045TA-1R0Y | SRN6045HA-1R5Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | Drum Core, Wirewound | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1 µH | 1.5 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 6.5 A | 8 A | 5 A |
| Current - Saturation (Isat) | 14.5A | 13.5A | 11A |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 9mOhm Max | 10mOhm | 15mOhm Max |
| Q @ Freq | 17 @ 7.96MHz | 15 @ 1MHz | 17 @ 7.96MHz |
| Frequency - Self Resonant | 80MHz | 110MHz | 55MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 1 MHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) | 0.177" (4.50mm) | 0.185" (4.70mm) |
