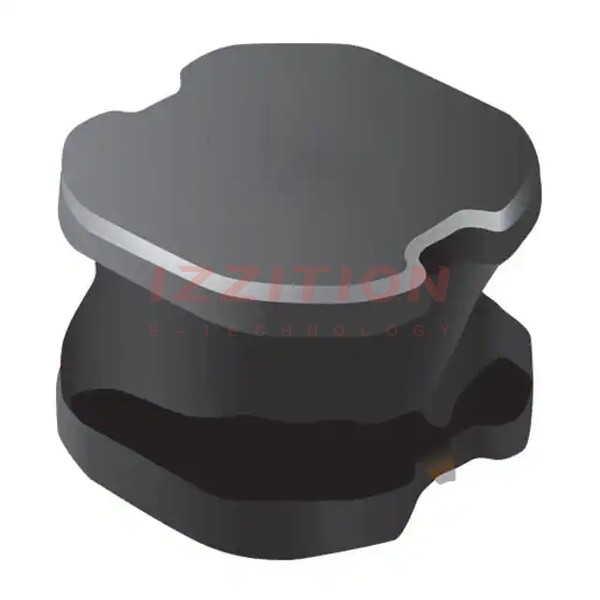

| Part Number | SRN6045-3R3Y | SRN6045-1R3Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 µH | 1.3 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 3.2 A | 4 A |
| Current - Saturation (Isat) | 5A | 8A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 30.2mOhm Max | 17mOhm Max |
| Q @ Freq | 15 @ 7.96MHz | 15 @ 7.96MHz |
| Frequency - Self Resonant | 27MHz | 48MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) |
