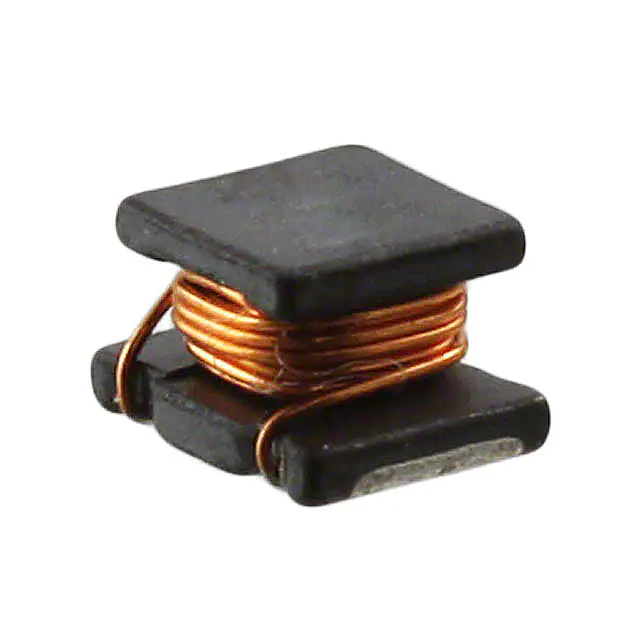

| Part Number | SRN6028-3R9M | SRN6028-3R3M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.9 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3 A | 3.4 A |
| Current - Saturation (Isat) | 2.7A | 3.6A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 38mOhm Max | 34mOhm Max |
| Q @ Freq | 10 @ 7.96MHz | 12 @ 7.96MHz |
| Frequency - Self Resonant | 35MHz | 42MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) |
