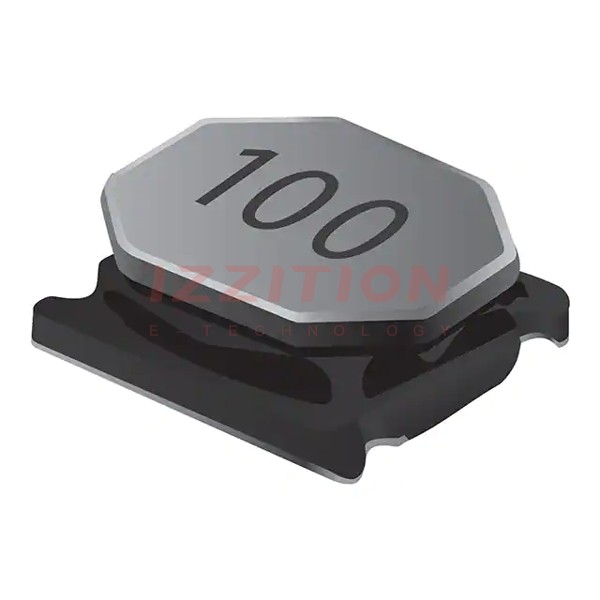

| Part Number | SRN5020TA-8R2M | SRN5020TA-2R2M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 8.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.75 A | 3.3 A |
| Current - Saturation (Isat) | 1.9A | 4.1A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 98mOhm | 32mOhm |
| Q @ Freq | 15 @ 100kHz | 15 @ 100kHz |
| Frequency - Self Resonant | 43MHz | 86MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
