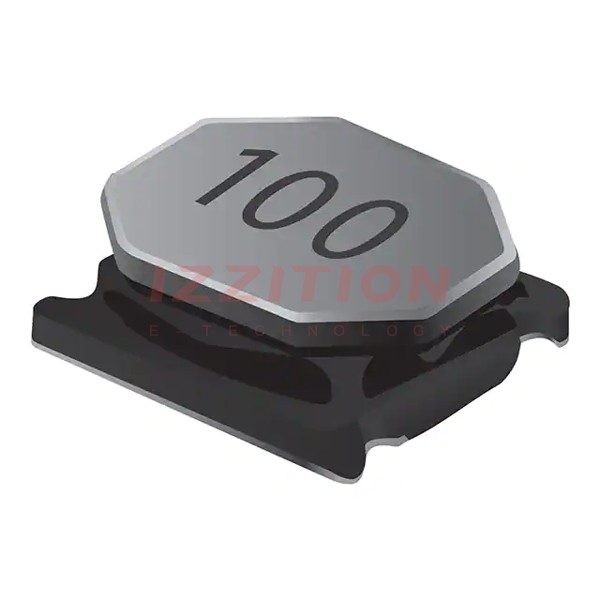

| Part Number | SRN5020TA-6R8M | SRN5040TA-6R8M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 2.5 A |
| Current - Saturation (Isat) | 2.1A | 3.3A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 90mOhm | 43mOhm |
| Q @ Freq | 15 @ 100kHz | 15 @ 100kHz |
| Frequency - Self Resonant | 46MHz | 32MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.195" L x 0.195" W (4.95mm x 4.95mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.161" (4.10mm) |
