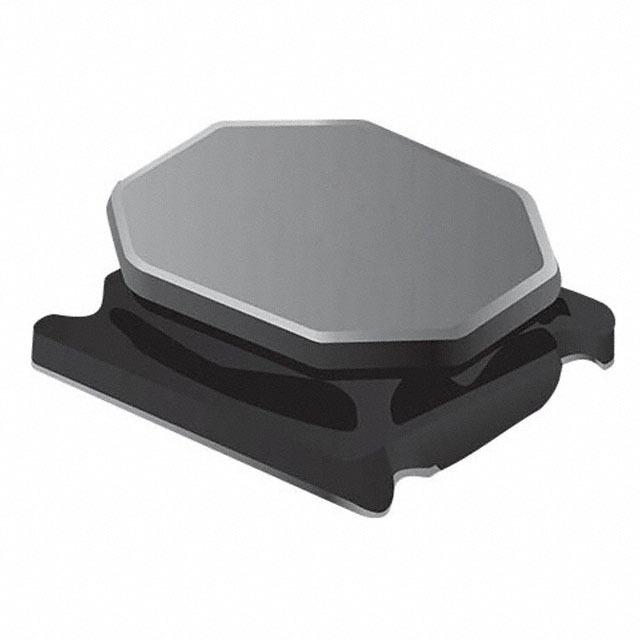

| Part Number | SRN5020-330M | SRN5040-330M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 900 mA | 1.2 A |
| Current - Saturation (Isat) | 800mA | 1.3A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 516mOhm Max | 216mOhm Max |
| Q @ Freq | 11 @ 2.52MHz | 17 @ 2.52MHz |
| Frequency - Self Resonant | 10MHz | 8MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.157" (4.00mm) |
