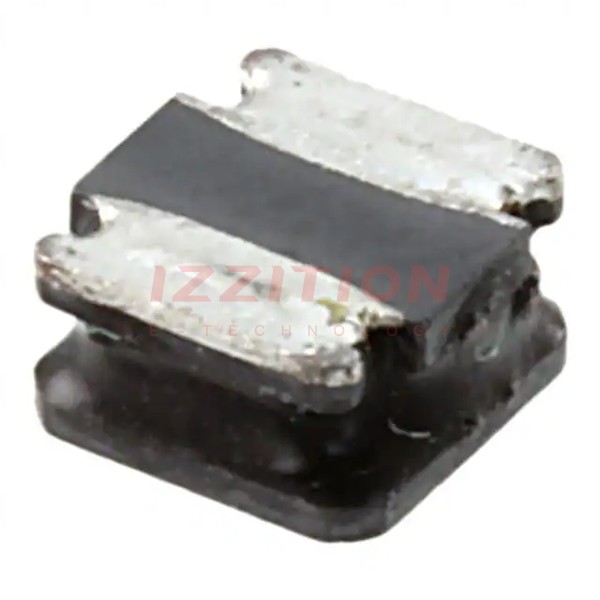

| Part Number | SRN4026-2R2Y | SRN4026-1R2Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.2 µH | 1.2 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2.1 A | 2.75 A |
| Current - Saturation (Isat) | 2.1A | 2.75A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 29mOhm Max | 24mOhm Max |
| Q @ Freq | 9 @ 7.96MHz | 9 @ 7.96MHz |
| Frequency - Self Resonant | 60MHz | 80MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.098" (2.50mm) | 0.098" (2.50mm) |
