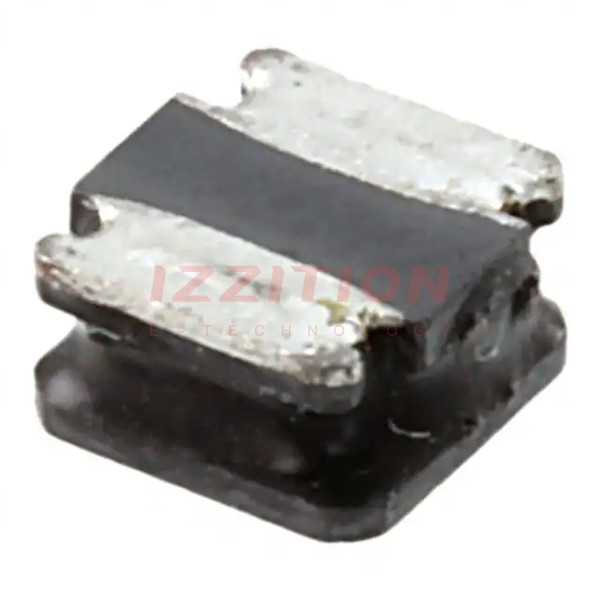

| Part Number | SRN4026-221M | SRN4026-220M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 220 µH | 22 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 200 mA | 670 mA |
| Current - Saturation (Isat) | 200mA | 670mA |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 2.76Ohm Max | 234mOhm Max |
| Q @ Freq | 30 @ 796kHz | 11 @ 2.52MHz |
| Frequency - Self Resonant | 4MHz | 16MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.098" (2.50mm) | 0.098" (2.50mm) |
