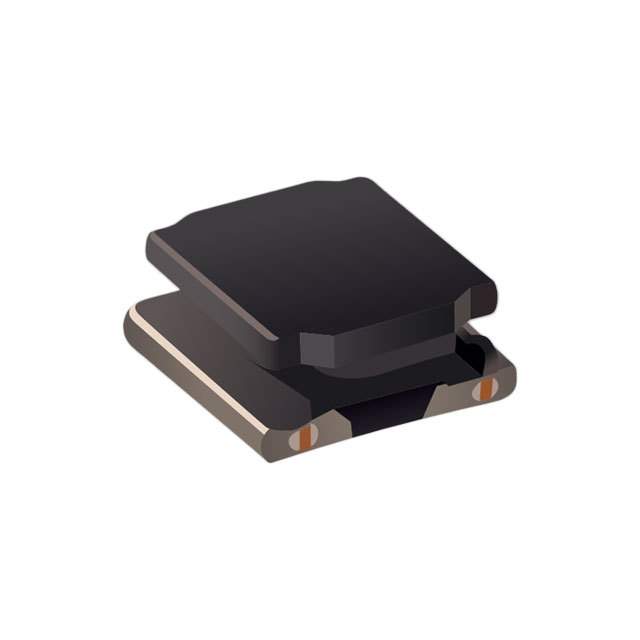

| Part Number | SRN4018TA-220M | SRN4012TA-220M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 22 µH | 22 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 750 mA | 620 mA |
| Current - Saturation (Isat) | 900mA | 500mA |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 290mOhm | 400mOhm |
| Q @ Freq | 10 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 26MHz | 18MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.047" (1.20mm) |
