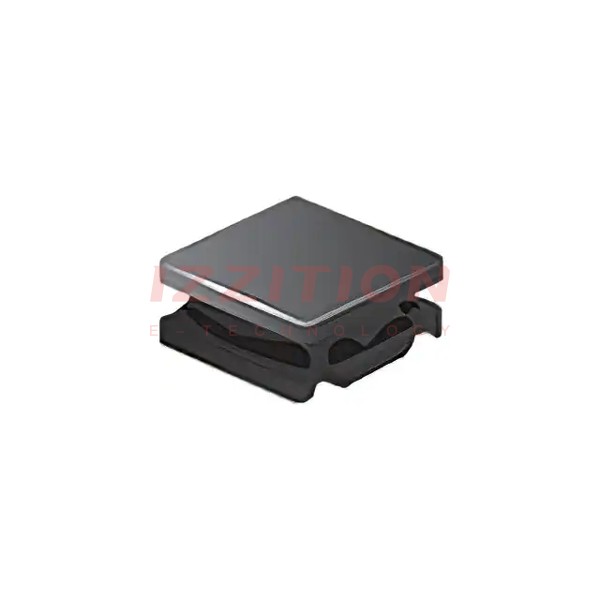

| Part Number | SRN4018-4R7M | SRN4012-4R7M | SRN4018-2R7M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH | 2.7 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 1.5 A | 2.3 A |
| Current - Saturation (Isat) | 2A | 1.2A | 2.4A |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 84mOhm Max | 114mOhm Max | 52mOhm Max |
| Q @ Freq | 9 @ 7.96MHz | - | 9 @ 7.96MHz |
| Frequency - Self Resonant | 35MHz | - | 52MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.047" (1.20mm) | 0.071" (1.80mm) |
