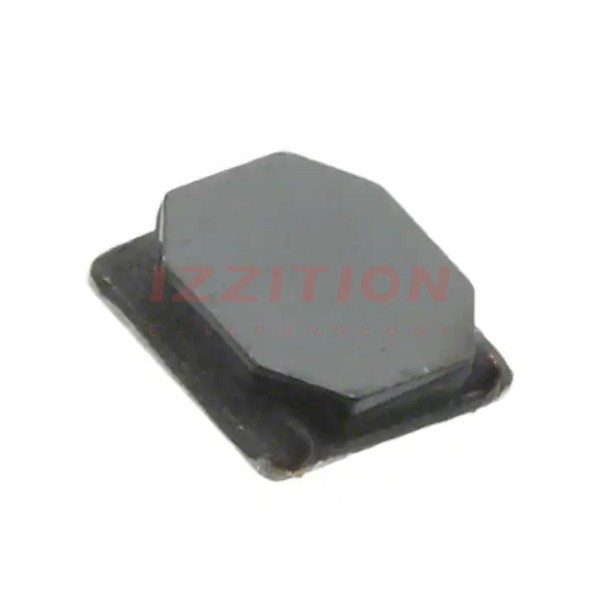

| Part Number | SRN4012T-1R0M | SRN4012T-1R5M | SRN4012TA-1R0M | SRN4012-1R0M | SRN4012T-100M | SRN4012T-150M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 1 µH | 1 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.2 A | 2 A | 2.2 A | 2.2 A | 1.1 A | 750 mA |
| Current - Saturation (Isat) | 2.8A | 2.2A | 2.8A | 2.8A | 800mA | 650mA |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 42mOhm | 50mOhm | 42mOhm | 45mOhm Max | 180mOhm | 260mOhm |
| Q @ Freq | 6 @ 100kHz | 6 @ 100kHz | 6 @ 100kHz | - | 10 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 100MHz | 90MHz | 100MHz | - | 30MHz | 24MHz |
| Ratings | - | - | AEC-Q200 | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
