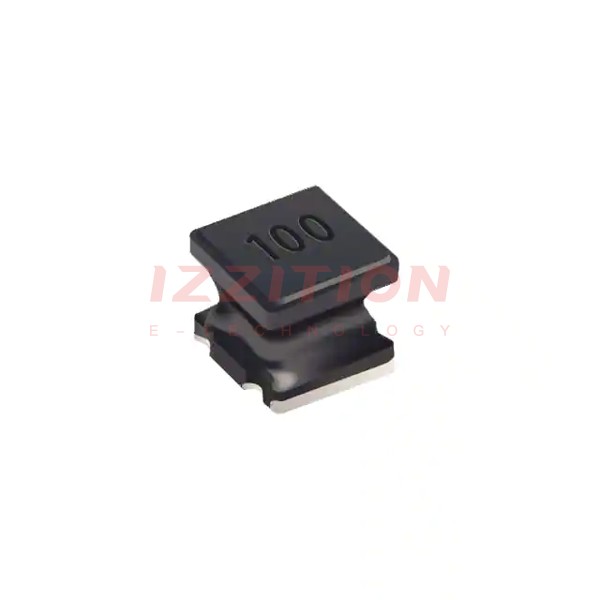

| Part Number | SRN3030HA-2R2Y | SRN4030HA-2R2Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2.1 A | 4.3 A |
| Current - Saturation (Isat) | 3.5A | 4.9A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 85mOhm Max | 30mOhm Max |
| Q @ Freq | 14 @ 7.96MHz | 14 @ 7.96MHz |
| Frequency - Self Resonant | 66MHz | 47MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
