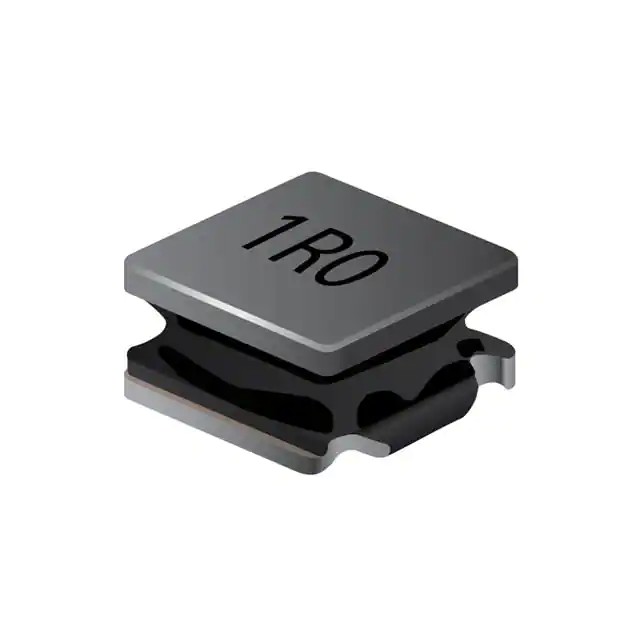

| Part Number | SRN3015C-4R7M | SRN3015-4R7M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 1.4 A |
| Current - Saturation (Isat) | 1.5A | 1.2A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 134mOhm Max | 136mOhm Max |
| Q @ Freq | 10 @ 100MHz | 10 @ 7.96MHz |
| Frequency - Self Resonant | 47MHz | 65MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | 3015 | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) |
