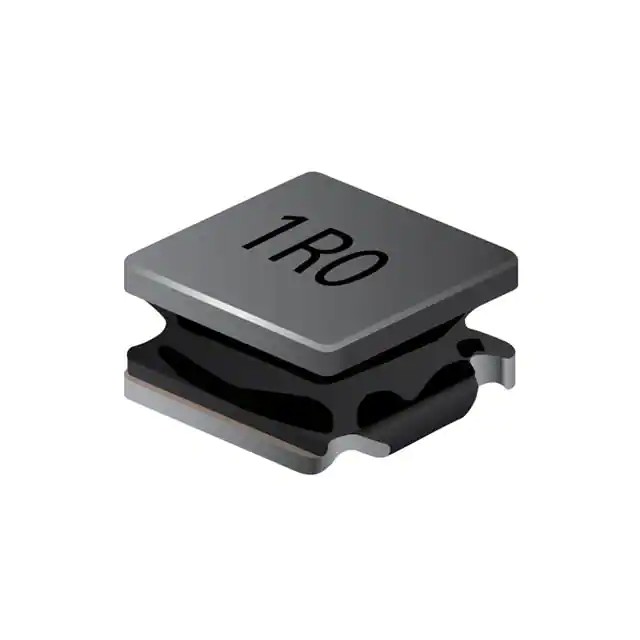

| Part Number | SRN3015C-100M | SRN3015C-101M | SRN3015C-1R0M | SRN3015C-180M | SRN3015C-150M | SRN3015-100M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 100 µH | 1 µH | 18 µH | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.5 A | 400 mA | 3 A | 1.1 A | 1.2 A | 1 A |
| Current - Saturation (Isat) | 1A | 330mA | 3A | 730mA | 850mA | 880mA |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 264mOhm Max | 4.08Ohm Max | 36mOhm Max | 456mOhm Max | 372mOhm Max | 276mOhm Max |
| Q @ Freq | 10 @ 100MHz | 10 @ 100MHz | 10 @ 100MHz | 15 @ 100MHz | 15 @ 100MHz | 10 @ 2.52MHz |
| Frequency - Self Resonant | 31MHz | 13MHz | 100MHz | 23MHz | 25MHz | 45MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 1 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 3015 | 3015 | 3015 | 3015 | 3015 | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
