Please send RFQ , we will respond immediately.

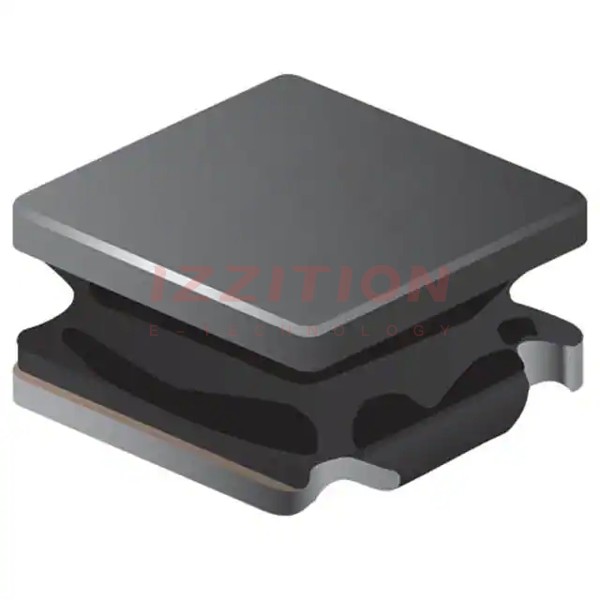

| Part Number | SRN3015-470M | SRN3015C-470M | SRN3010-470M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 47 µH | 47 µH | 47 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 400 mA | 700 mA | 350 mA |
| Current - Saturation (Isat) | 380mA | 460mA | 280mA |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 1.406Ohm Max | 1.44Ohm Max | 1.92Ohm Max |
| Q @ Freq | 27 @ 2.52MHz | 15 @ 100MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 18MHz | 14MHz | 16MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | 3015 | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.039" (1.00mm) |
