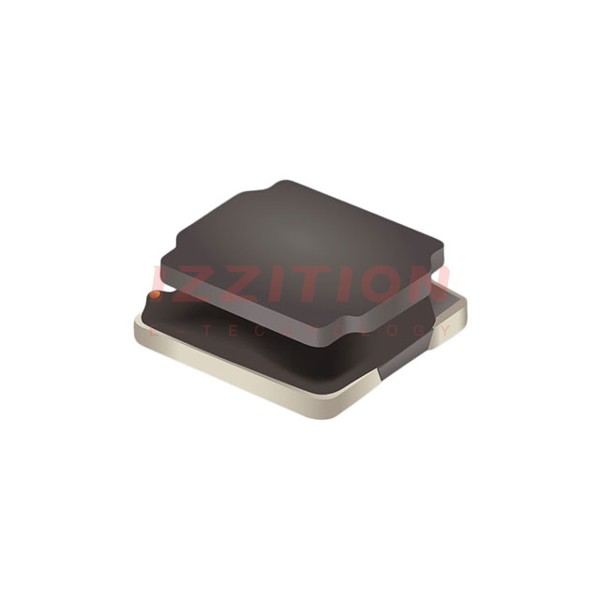

| Part Number | SRN3012TA-3R3M | SRN4012TA-3R3M | SRN3015TA-3R3M | SRN3010TA-3R3M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.55 A | 1.7 A | 1.4 A | 1.5 A |
| Current - Saturation (Isat) | 1.2A | 1.4A | 1.4A | 1.1A |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 100mOhm | 70mOhm | 80mOhm | 130mOhm |
| Q @ Freq | 15 @ 1MHz | 6 @ 100kHz | 12 @ 100kHz | 18 @ 1MHz |
| Frequency - Self Resonant | 90MHz | 60MHz | 49MHz | 85MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 100 kHz | 100 kHz | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1212 (3030 Metric) | Nonstandard | 1212 (3030 Metric) | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.059" (1.50mm) | 0.039" (1.00mm) |
