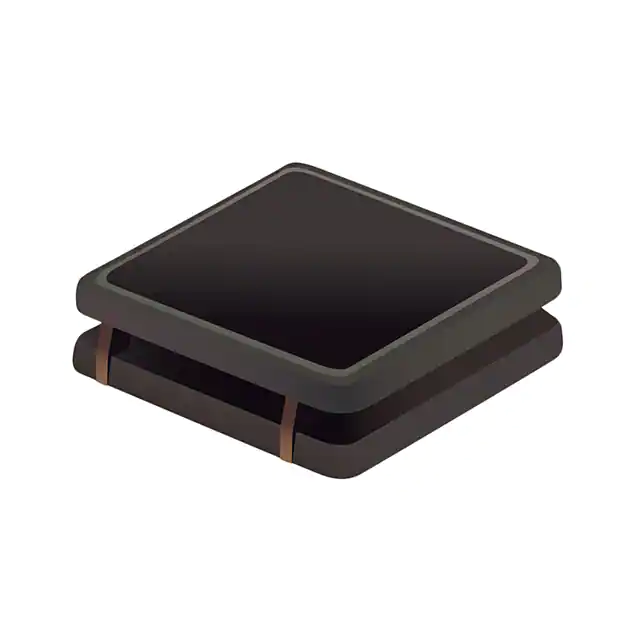

| Part Number | SRN3010TA-1R0Y | SRN3012TA-1R0Y | SRN3015TA-1R0Y | SRN3010TA-1R5Y | SRN2010TA-1R0Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1 µH | 1 µH | 1.5 µH | 1 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.1 A | 2 A | 2.2 A | 1.9 A | 1.6 A |
| Current - Saturation (Isat) | 1.8A | 2.15A | 2.2A | 1.5A | 1.8A |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 55mOhm | 42mOhm | 30mOhm | 70mOhm | 80mOhm |
| Q @ Freq | 10 @ 1MHz | 10 @ 1MHz | 12 @ 100kHz | 12 @ 1MHz | 12 @ 1MHz |
| Frequency - Self Resonant | 170MHz | 150MHz | 100MHz | 150MHz | 170MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 100 kHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | 1212 (3030 Metric) | 1212 (3030 Metric) | Nonstandard | 0806 (2016 Metric) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.059" (1.50mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
