Please send RFQ , we will respond immediately.

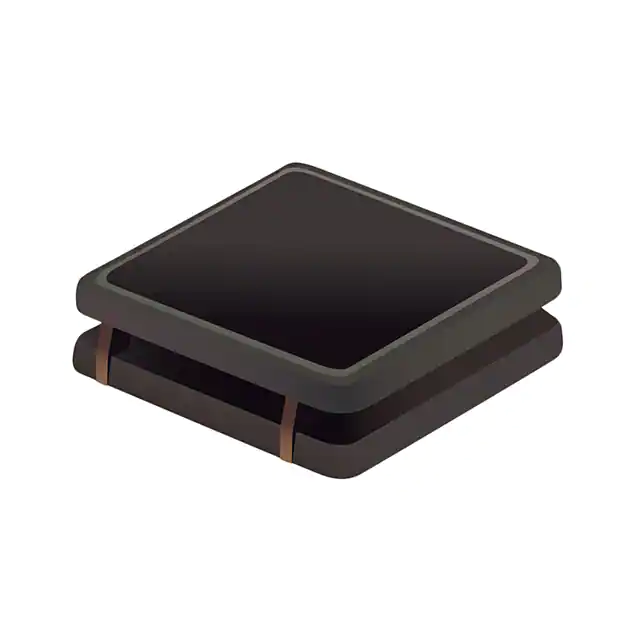

| Part Number | SRN3010TA-150M | SRN3015TA-150M | SRN3012TA-150M | SRN2010TA-150M | SRN3010TA-100M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 µH | 15 µH | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 700 mA | 700 mA | 740 mA | 360 mA | 800 mA |
| Current - Saturation (Isat) | 540mA | 650mA | 620mA | 450mA | 630mA |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 510mOhm | 320mOhm | 386mOhm | 1.4Ohm | 350mOhm |
| Q @ Freq | 22 @ 1MHz | 12 @ 100kHz | 20 @ 1MHz | 16 @ 1MHz | 22 @ 1MHz |
| Frequency - Self Resonant | 35MHz | 23MHz | 35MHz | 40MHz | 40MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 100 kHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | 1212 (3030 Metric) | 1212 (3030 Metric) | 0806 (2016 Metric) | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
