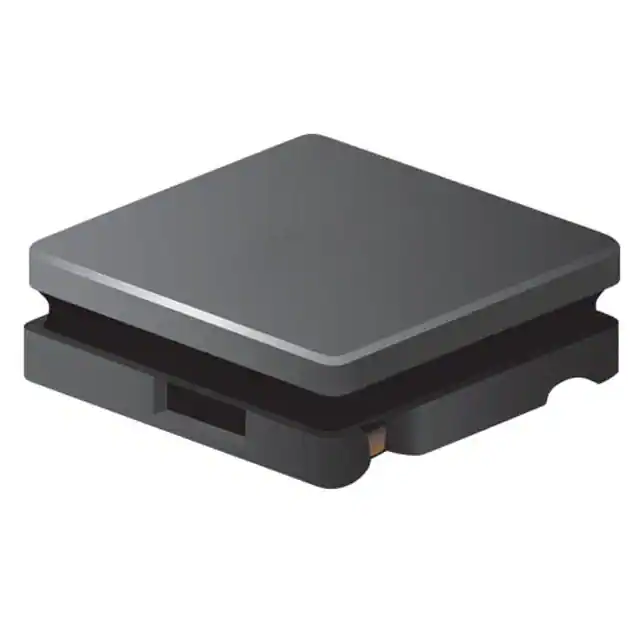

| Part Number | SRN3010-1R5Y | SRN3015-1R5Y | SRN3010-1R0Y | SRN3010-1R2Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.5 µH | 1 µH | 1.2 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2 A | 2.1 A | 2.3 A | 2.1 A |
| Current - Saturation (Isat) | 1.65A | 2A | 2.3A | 1.9A |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 91mOhm Max | 66mOhm Max | 63mOhm Max | 81mOhm Max |
| Q @ Freq | 7 @ 7.96MHz | 10 @ 7.96MHz | 7 @ 7.96MHz | 7 @ 7.96MHz |
| Frequency - Self Resonant | 110MHz | 130MHz | 140MHz | 130MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 1 MHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
