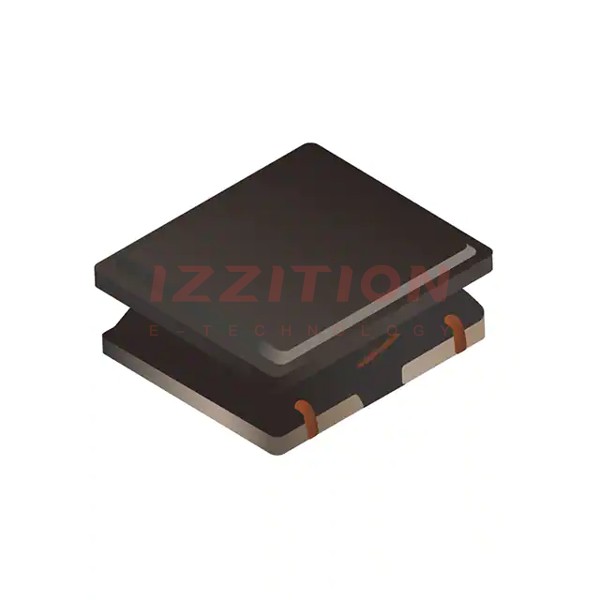

| Part Number | SRN2510F-2R2M | SRN2510-2R2M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | Drum Core, Wirewound |
| Material - Core | Metal | Ferrite |
| Inductance | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.6 A | 1.5 A |
| Current - Saturation (Isat) | 2.8A | 1.9A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 93mOhm Max | 169mOhm Max |
| Q @ Freq | - | 11 @ 1MHz |
| Frequency - Self Resonant | 40MHz | 80MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.040" (1.02mm) |
