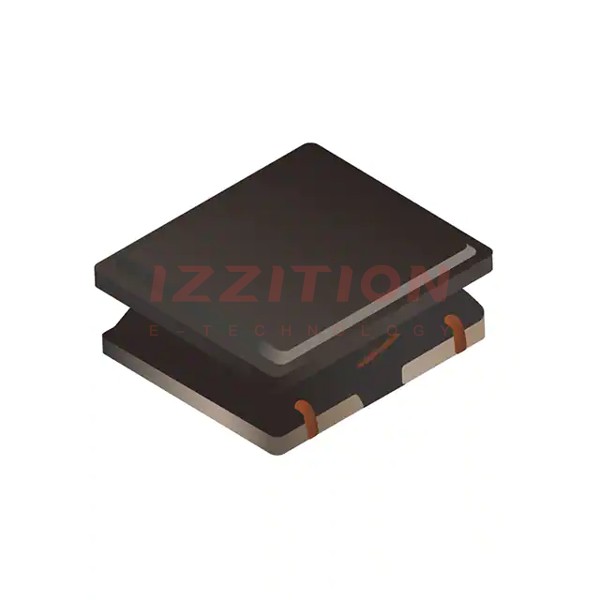

| Part Number | SRN2510F-1R5M | SRN2510F-1R0M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal | Metal |
| Inductance | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.2 A | 3.5 A |
| Current - Saturation (Isat) | 3.8A | 4.9A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 74mOhm Max | 53mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 55MHz | 60MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
