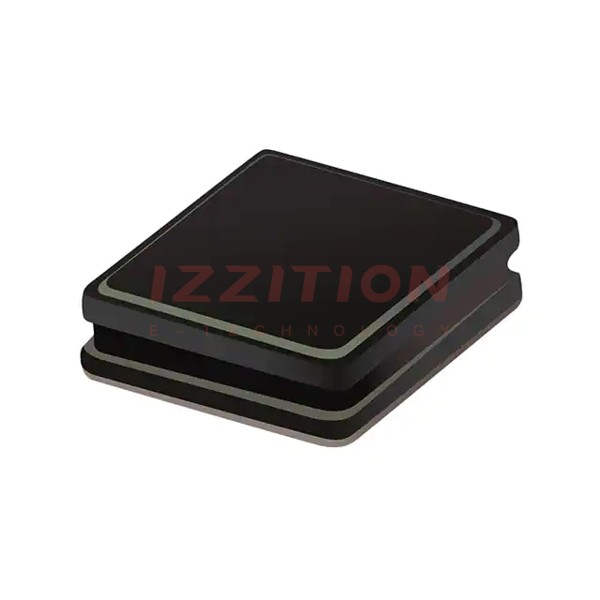

| Part Number | SRN2508A-100M | SRN2508A-1R0M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 10 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 450 mA | 1.2 A |
| Current - Saturation (Isat) | 550mA | 1.75A |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 930mOhm | 120mOhm |
| Q @ Freq | 10 @ 1MHz | 10 @ 1MHz |
| Frequency - Self Resonant | 50MHz | 220MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) |
