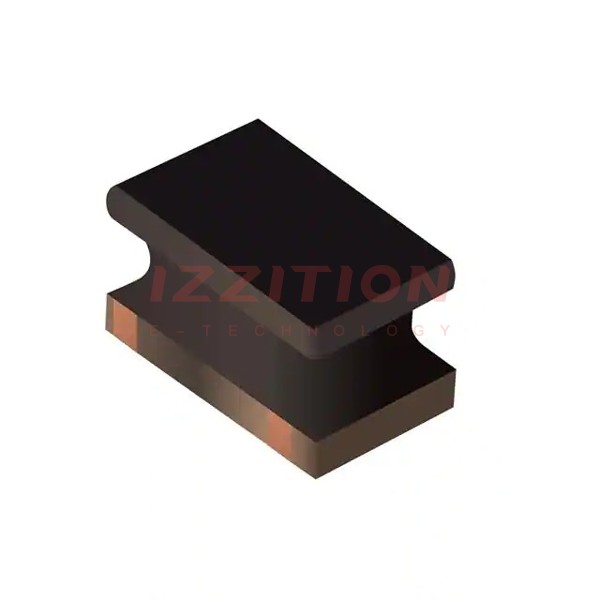

| Part Number | SRN2012T-1R0K | SRN2012T-100K | SRN2012T-150K |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 10 µH | 15 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.3 A | 560 mA | 380 mA |
| Current - Saturation (Isat) | 1.1A | 360mA | 300mA |
| Shielding | Semi-Shielded | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 85mOhm | 800mOhm | 1.4Ohm |
| Q @ Freq | 14 @ 7.9MHz | 14 @ 2.5MHz | 15 @ 2.5MHz |
| Frequency - Self Resonant | 208MHz | 40MHz | 35MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz | 2.5 MHz | 2.5 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
