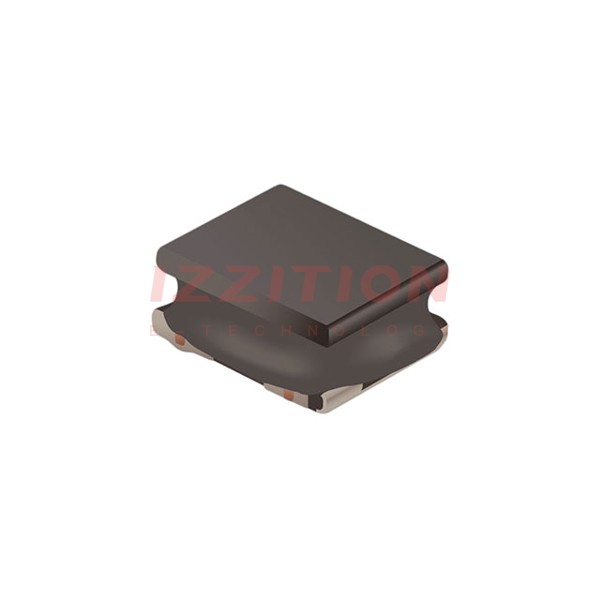

| Part Number | SRN2010TA-4R7M | SRN3010TA-4R7M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 900 mA | 1.3 A |
| Current - Saturation (Isat) | 770mA | 900mA |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 360mOhm | 170mOhm |
| Q @ Freq | 14 @ 1MHz | 20 @ 1MHz |
| Frequency - Self Resonant | 62MHz | 80MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
