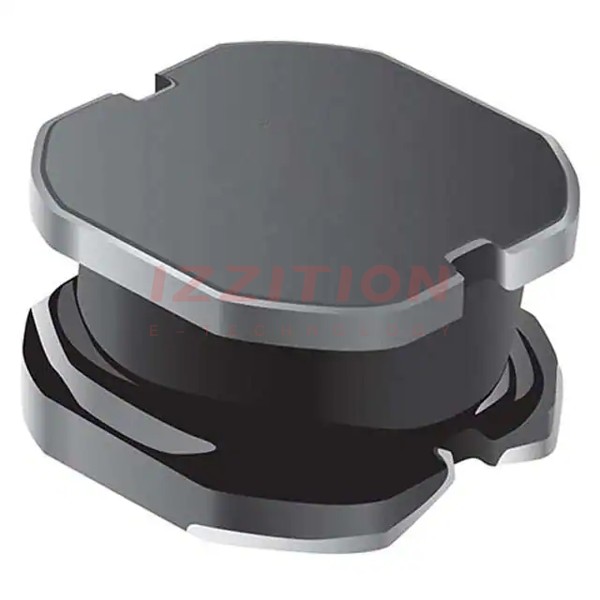

| Part Number | SRN1060-470M | SRN1060-471M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 47 µH | 470 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 800 mA |
| Current - Saturation (Isat) | 2.3A | 800mA |
| Shielding | Semi-Shielded | Semi-Shielded |
| DC Resistance (DCR) | 110mOhm Max | 950mOhm Max |
| Q @ Freq | 16 @ 2.52MHz | 13 @ 796kHz |
| Frequency - Self Resonant | 6MHz | 2MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.394" L x 0.386" W (10.00mm x 9.80mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) |
