SRF1280A-6R8Y
  • Share:

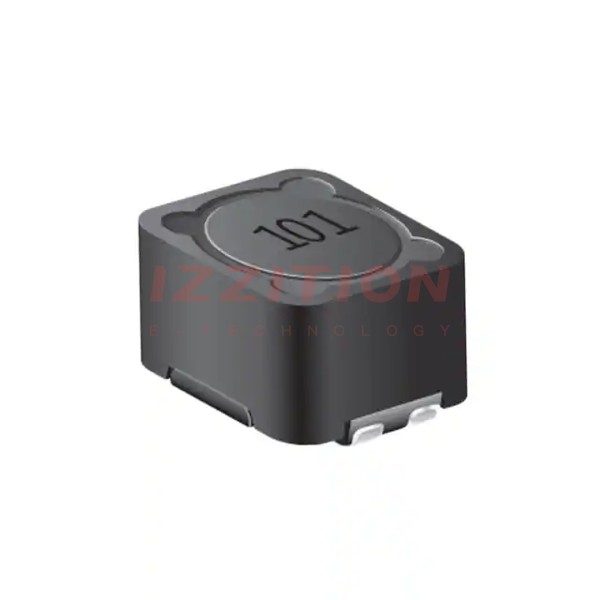

Bourns Inc. SRF1280A-6R8Y

Manufacturer No:
SRF1280A-6R8Y
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRF1280A-6R8Y Datasheet
ECAD Model:
-
Description:
INDUCT ARRAY 2 COIL 6.8UH SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Coils:2
Inductance - Connected In Parallel:6.8 µH
Inductance - Connected In Series:27.2 µH
Tolerance:±30%
Current Rating - Parallel:7.34 A
Current Rating - Series:3.67 A
Current Saturation - Parallel:13.3 A
Current Saturation - Series:6.67 A
DC Resistance (DCR) - Parallel:18.3mOhm Max
DC Resistance (DCR) - Series:65.6mOhm Max
Shielding:Shielded
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.315" (8.00mm)
0 Remaining View Similar

In Stock

$2.42
81

Please send RFQ , we will respond immediately.

Similar Products

Part Number SRF1280A-6R8Y SRF1260A-6R8Y   SRF1280-6R8Y
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active
Number of Coils 2 2 2
Inductance - Connected In Parallel 6.8 µH 6.8 µH 6.8 µH
Inductance - Connected In Series 27.2 µH 27.2 µH 27.2 µH
Tolerance ±30% ±30% ±30%
Current Rating - Parallel 7.34 A 6.64 A 7.34 A
Current Rating - Series 3.67 A 3.32 A 3.67 A
Current Saturation - Parallel 13.3 A 8.68 A 13.3 A
Current Saturation - Series 6.67 A 4.34 A 6.67 A
DC Resistance (DCR) - Parallel 18.3mOhm Max 18.6mOhm Max 18.3mOhm Max
DC Resistance (DCR) - Series 65.6mOhm Max 67.2mOhm Max 65.6mOhm Max
Shielding Shielded Shielded Shielded
Ratings AEC-Q200 AEC-Q200 -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm) 0.244" (6.20mm) 0.315" (8.00mm)
