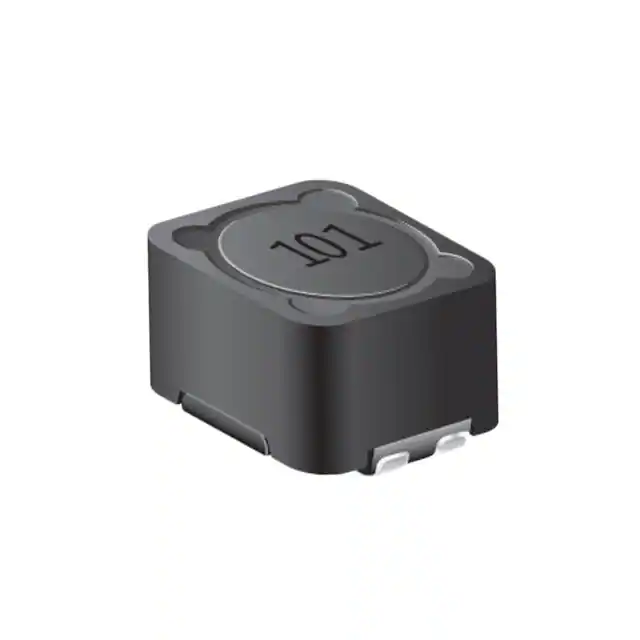

| Part Number | SRF1280A-151M | SRF1260A-151M | SRF1280-151M | SRF1280A-101M | SRF1280A-150M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 150 µH | 150 µH | 150 µH | 100 µH | 15 µH |
| Inductance - Connected In Series | 600 µH | 600 µH | 600 µH | 400 µH | 60 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 1.59 A | 1.48 A | 1.59 A | 1.96 A | 5.03 A |
| Current Rating - Series | 796 mA | 739 mA | 796 mA | 980 mA | 2.51 A |
| Current Saturation - Parallel | 3.01 A | 1.81 A | 3.01 A | 3.64 A | 9.66 A |
| Current Saturation - Series | 1.51 A | 905 mA | 1.51 A | 1.82 A | 4.83 A |
| DC Resistance (DCR) - Parallel | 261mOhm Max | 254mOhm Max | 261mOhm Max | 175mOhm Max | 33.3mOhm Max |
| DC Resistance (DCR) - Series | 1.013Ohm Max | 972mOhm Max | 1.013Ohm Max | 701mOhm Max | 129mOhm Max |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| Ratings | AEC-Q200 | AEC-Q200 | - | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.315" (8.00mm) | 0.244" (6.20mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
