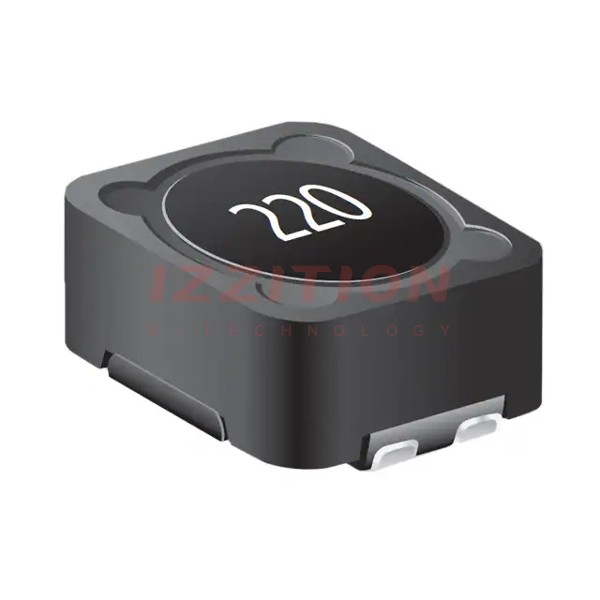

| Part Number | SRF1260A-6R8Y | SRF1280A-6R8Y | SRF1260-6R8Y |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 6.8 µH | 6.8 µH | 6.8 µH |
| Inductance - Connected In Series | 27.2 µH | 27.2 µH | 27.2 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating - Parallel | 6.64 A | 7.34 A | 6.64 A |
| Current Rating - Series | 3.32 A | 3.67 A | 3.32 A |
| Current Saturation - Parallel | 8.68 A | 13.3 A | 8.68 A |
| Current Saturation - Series | 4.34 A | 6.67 A | 4.34 A |
| DC Resistance (DCR) - Parallel | 18.6mOhm Max | 18.3mOhm Max | 18.6mOhm Max |
| DC Resistance (DCR) - Series | 67.2mOhm Max | 65.6mOhm Max | 67.2mOhm Max |
| Shielding | Shielded | Shielded | Shielded |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.244" (6.20mm) | 0.315" (8.00mm) | 0.244" (6.20mm) |
