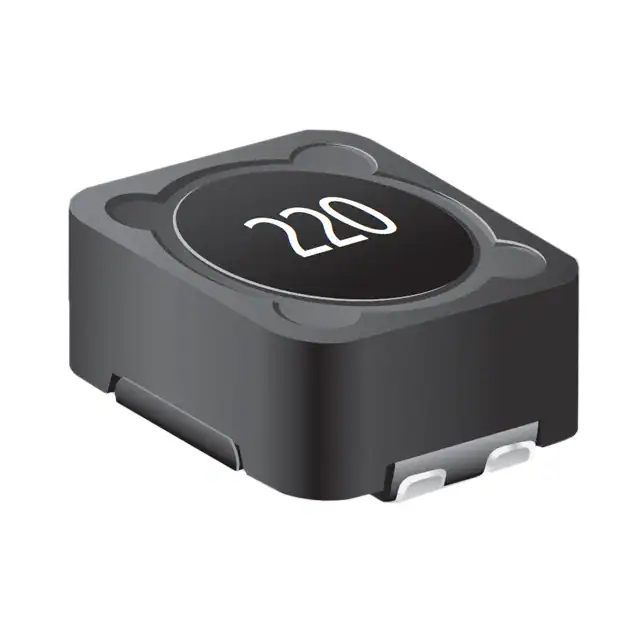

| Part Number | SRF1260A-470M | SRF1280A-470M | SRF1260A-471M | SRF1260-470M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 47 µH | 47 µH | 470 µH | 47 µH |
| Inductance - Connected In Series | 188 µH | 188 µH | 1.88 mH | 188 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 2.71 A | 2.95 A | 870 mA | 2.71 A |
| Current Rating - Series | 1.35 A | 1.47 A | 434 mA | 1.35 A |
| Current Saturation - Parallel | 3.24 A | 5.28 A | 1.02 A | 3.24 A |
| Current Saturation - Series | 1.62 A | 2.64 A | 510 mA | 1.62 A |
| DC Resistance (DCR) - Parallel | 86mOhm Max | 89.8mOhm Max | 830mOhm Max | 86mOhm Max |
| DC Resistance (DCR) - Series | 340mOhm Max | 353mOhm Max | 3.197Ohm Max | 340mOhm Max |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.244" (6.20mm) | 0.315" (8.00mm) | 0.244" (6.20mm) | 0.244" (6.20mm) |
