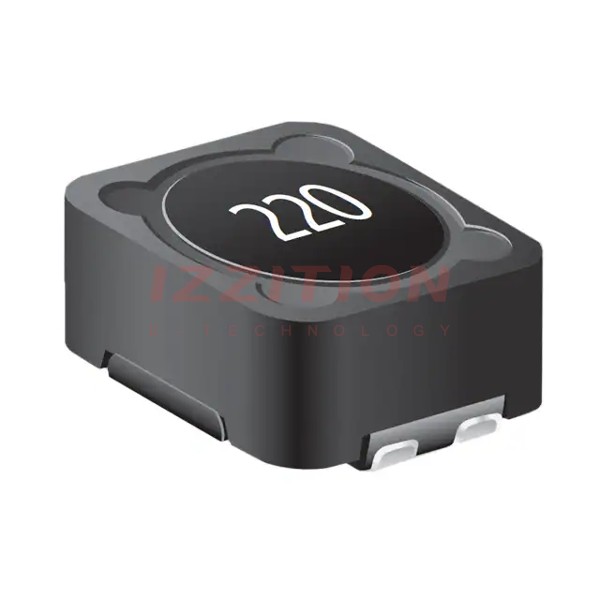

| Part Number | SRF1260A-220M | SRF1280A-220M | SRF1260A-221M | SRF1260A-820M | SRF1260-220M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 22 µH | 22 µH | 220 µH | 82 µH | 22 µH |
| Inductance - Connected In Series | 88 µH | 88 µH | 880 µH | 328 µH | 88 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 3.7 A | 4 A | 1.19 A | 2.05 A | 3.7 A |
| Current Rating - Series | 1.84 A | 2 A | 594 mA | 1.03 A | 1.84 A |
| Current Saturation - Parallel | 4.71 A | 7.57 A | 1.51 A | 2.39 A | 4.71 A |
| Current Saturation - Series | 2.36 A | 3.78 A | 755 mA | 1.2 A | 2.36 A |
| DC Resistance (DCR) - Parallel | 45.1mOhm Max | 50.3mOhm Max | 354mOhm Max | 150mOhm Max | 45.1mOhm Max |
| DC Resistance (DCR) - Series | 172mOhm Max | 192mOhm Max | 1.416Ohm Max | 568mOhm Max | 172mOhm Max |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.244" (6.20mm) | 0.315" (8.00mm) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.244" (6.20mm) |
