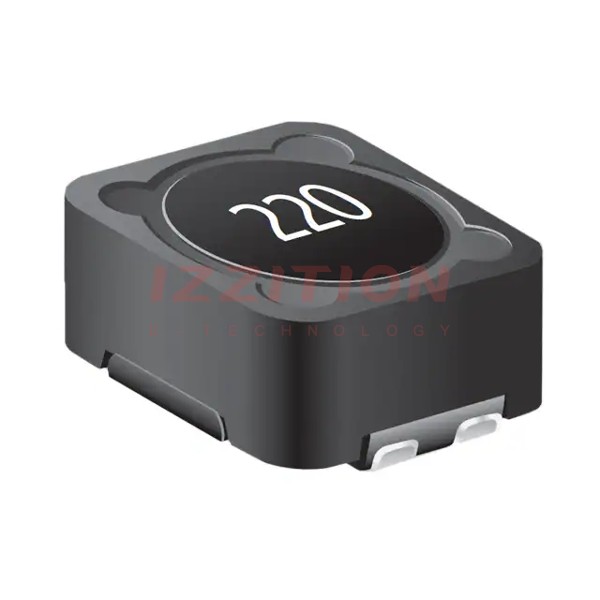

| Part Number | SRF1260A-100M | SRF1280A-100M | SRF1260A-150M | SRF1260A-101M | SRF1260A-102M | SRF1260-100M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 10 µH | 10 µH | 15 µH | 100 µH | 1 mH | 10 µH |
| Inductance - Connected In Series | 40 µH | 40 µH | 60 µH | 400 µH | 4 mH | 40 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 5.35 A | 6.04 A | 4.27 A | 1.78 A | 570 mA | 5.35 A |
| Current Rating - Series | 2.67 A | 3.02 A | 2.13 A | 892 mA | 283 mA | 2.67 A |
| Current Saturation - Parallel | 7.17 A | 11.2 A | 5.69 A | 2.2 A | 700 mA | 7.17 A |
| Current Saturation - Series | 3.59 A | 5.6 A | 2.85 A | 1.1 A | 350 mA | 3.59 A |
| DC Resistance (DCR) - Parallel | 24.6mOhm Max | 24.1mOhm Max | 32.9mOhm Max | 171mOhm Max | 1.854Ohm Max | 24.6mOhm Max |
| DC Resistance (DCR) - Series | 93.4mOhm Max | 92.1mOhm Max | 125mOhm Max | 656mOhm Max | 6.782Ohm Max | 93.4mOhm Max |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.244" (6.20mm) | 0.315" (8.00mm) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.244" (6.20mm) |
